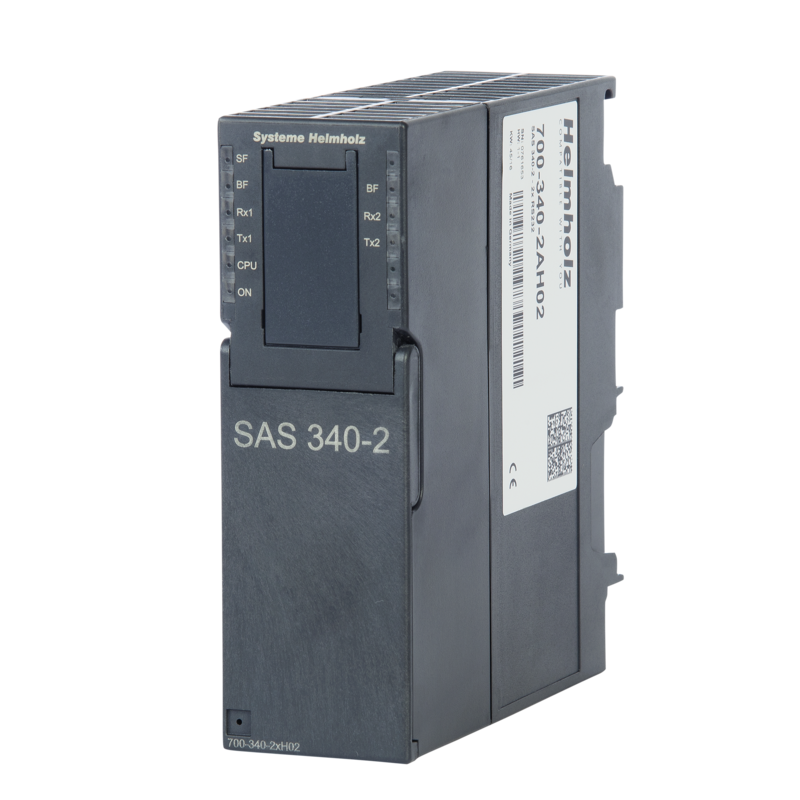

SAS 340-2, 2xRS422/RS485
Kod produktu: 700-340-2CH02

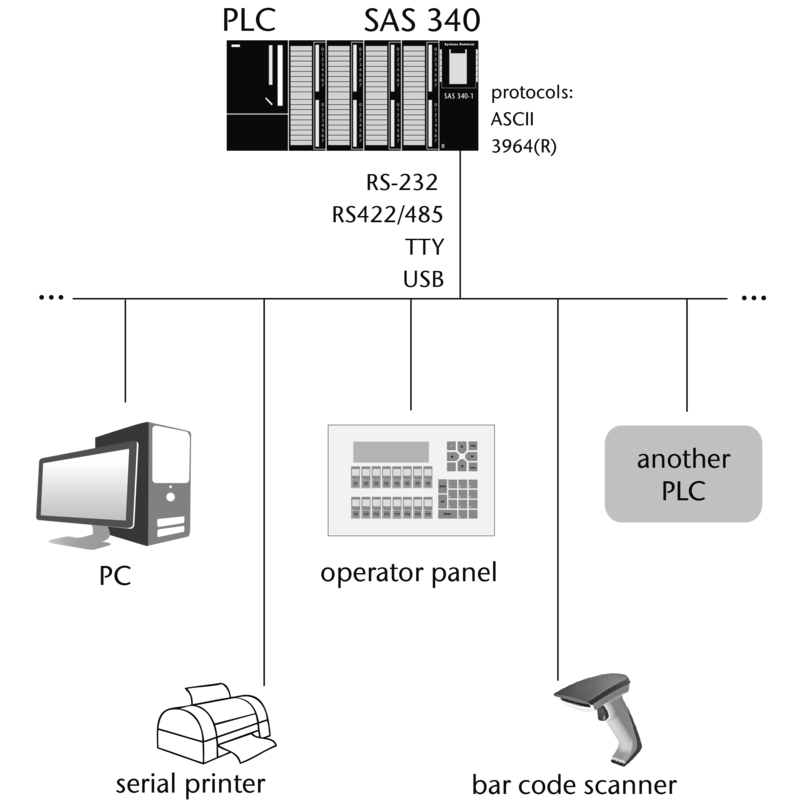

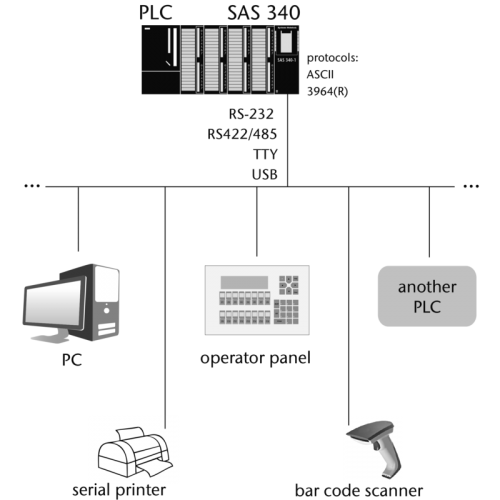

It allows the connection to the PLC of serial devices such as barcode scanners, operator terminals, serial printers, PCs, PLCs of other manufacturers and supports the protocols ASCII and 3964R.
The SAS 340-2 features advanced functions such as support for higher baud rates up to 115 kBaud, making it flexible without any loss of compatibility.
The handling blocks supplied enable simple and flexible integration into the PLC. The module is parameterized in the hardware configurator of the PLC. The expanded functionalities can also easily be activated with the handling blocks.
The serial units are connected via RS422/RS485. The two 15-pin Sub-D sockets with standard pin assignment are provided for connecting the partner devices.
A virtual COM port driver enables the use of software that expects a COM interface.
Note
To enable high integration density in the control cabinet, the SAS 340 is also available with 2 serial interfaces. Both interfaces can be configured independently and used in the PLC.
| Product | Ordernumber |
| SAS 340-2, 2 x RS422/RS485, incl. CD with handling blocks and manual | 700-340-2CH02 |
Výroba ukončena v roce 2022, doprodej skladových zásob.
| General information | |
|---|---|
| Order number | 700-340-2CH02 |
| Article name | SAS 340-2, 2 x RS422/RS485 |
| Scope of delivery | SAS 340-2 RS422/RS485, CD with handling blocks and manual |
| Voltage supply | DC +5 V via backplane bus |
| Current draw | |
| Current draw typical | 160 mA |
| Current draw maximal | 190 mA |
| Communication interface | |
| Number | 2 |
| Type | RS422/RS485 (X27) |
| Transmission rate | 300 Baud ... 115 kBaud |
| Protocol | ASCII, 3964 ( R ) |
| Connection | Connector, SUB-D, 15-pin |
| Status indicator | 6 LEDs |
| Ambient conditions | |
| Ambient temperature | 0 °C … +60 °C |
| Transport and storage temperature | -25 °C … +75 °C |
| Pollution degree | 2 |
| Protection rating | IP20 |
| Certifications | CE |
| CE | |
| RoHS | Yes |
| REACH | Yes |
